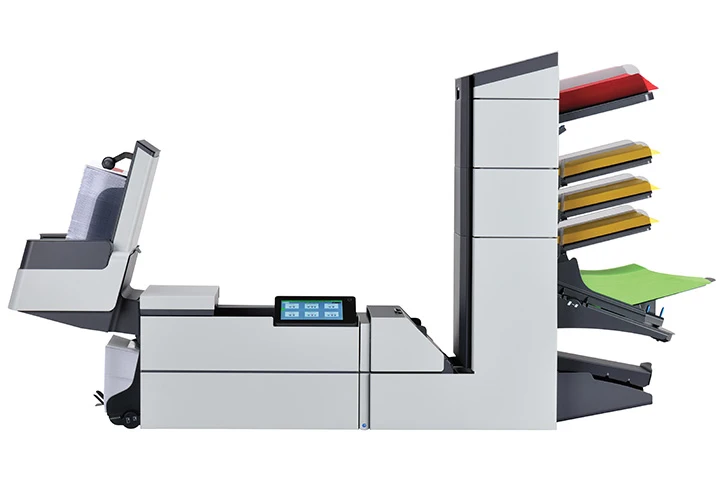

Automate Document Folding and Inserting with the DS-85i



The DS-85i folding and inserting machine process up to 60,000 envelopes per month and is ideally suited for businesses that need to handle a wide variety of document sizes and types. The modularity of the DS-85i works thanks to the six feed stations that process even the most challenging combinations of document sizes and types.

With the full-page Contact Image Sensor (CIS) scanning technology, the DS-85i can read any type of coding, including optical mark, optical character, and 1D and 2D data matrix barcodes. Because the scanner reads the entire area of the page, codes can be printed anywhere on the document and read horizontally and vertically.

With its large loading and unloading capabilities and many intelligent features to maintain operation, the DS-85i fits perfectly into busy mailrooms.

View DS-85i product video

Get A quote



Download DS-85i Brochure

Why choose the DS-85i?

Efficiency



Control at your fingertips



Use the colour touch screen and benefit from an intuitive software to easily set up the machine



Efficiency



Scale efficiency



Your mail will look more professional and personalised, maximising your customer satisfaction



Efficiency



Mitigate risks



Accuracy in every envelope will ensure that the document will reach the correct recipient



Efficiency



Enhance productivity



Save your employees from tedious and repetitive labour by automating an heavy manual process



The smartest solution for your outbound mailing

Savings

Could not be easier than that

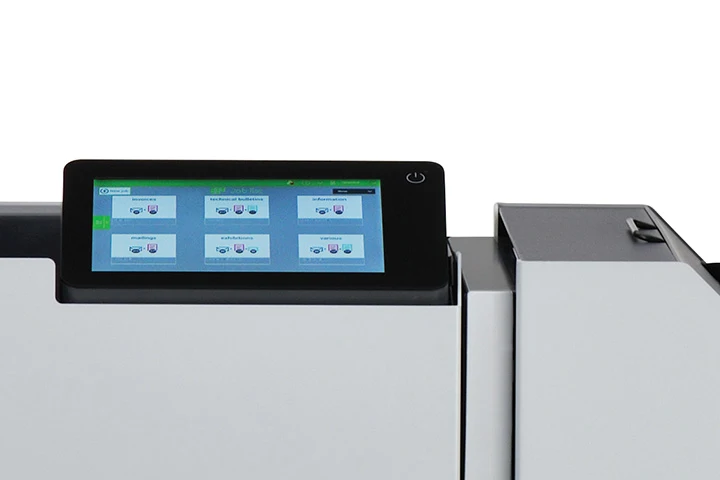

Eaily recall up to 20 jobs thanks to a dedicated memory, or create new ones with ease. A 7” colour touch screen and wizard-based guidance simplify every operation. Just load documents and envelopes and press start: the DS-85i will automatically measure the materials and set itself up.

Business-continuity ready

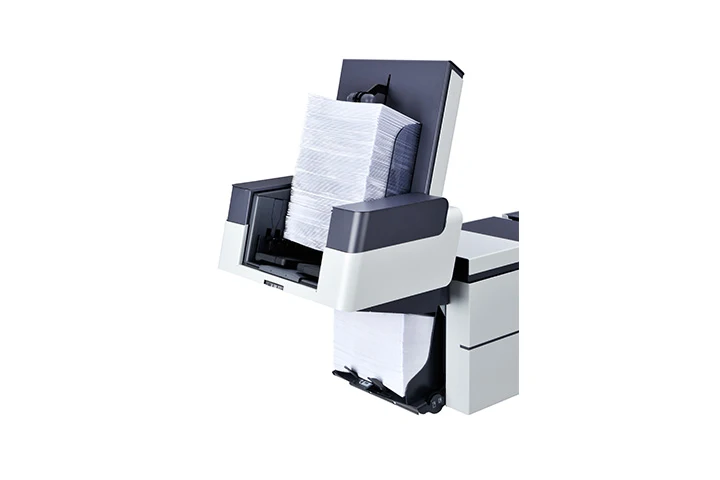

If one feeder runs empty, another one automatically takes over, allowing you to refill as needed until all jobs are complete. The new DS-85i can automatically fold and insert up to 4,000 mail pieces per hour thanks to linking feeders.

Savings

Automated



The high capacity vertical stacker reduces the frequency of unloading, freeing the operator to attend to other tasks. It requires less handling and makes it possible to complete up to 500 envelopes every 8 minutes while running at maximum speed.

Versatile



The DS-85i can be configured with barcode reading technology to automate variable-page jobs, incorporating another layer of security that ensures the right documents are always sent to the right person.

Savings

Specifications

Speed Up to 4,000 / hour
Load'n Go automatic job set-up Standard
FlexFeed multi-format feeder Standard
Multiple sheet feeding Standard
Cascade feeding Standard
Number of feeders Up to 6
Job memory 20
Manual feeding Standard
Accumulate before folding Standard
Tip to tip sealing Standard
Document feeder capacity Up to 725 sheets 80 gsm
Envelope feeder capacity 325 envelopes
Vertical envelope stacker Up to 500
1D and 2D barcode reader Optional
Document height 90mm - 356mm
Document width 130mm - 230mm
Document weight 60 - 250 gsm
Envelope length 90 - 162mm
Envelope width 160mm - 248mm
PowerFold folding capacity Up to 10 sheets
Maximum Set thickness 2.5mm
Fold types Letter, z-fold, single, double parallel, no fold



Mail Assembly Accuracy


Secure'n Feed doubles detection Standard
Document loading detection Standard



Options




Optical Mark Recognition (OMR) reader Available
AIMS-500 Mail Assembly Verification Software Available
Output Management Software (OMS) Available



System Specifications




Dimensions (Length x Height x Depth) 1,820mm x 925mm x 420 (mm)
Weight 110kg
